Pure sine wave inverters, with their excellent performance and wide compatibility, have become the preferred power conversion equipment for both home and commercial users. Compared with ordinary inverters, pure sine wave inverters can provide power waveforms that are closer to the natural waveform, which not only protects various electronic devices, but also improves operational efficiency and reduces energy consumption.
We'll take a closer look at pure sine wave inverters to help you make informed buying decisions and utilization choices to ensure that they are utilized to their fullest advantage.
What are Pure Sine Wave Inverters
Pure sine wave inverters are power electronic devices that can convert direct current (DC) into pure sine wave alternating current (AC), which is exactly the same as the standard grid power supply. Compared with ordinary square wave or modified sine wave inverters, pure sine wave inverters output a smoother and more stable AC waveform, which can perfectly simulate the waveform of the grid power supply and provide high-quality power for all kinds of electrical equipment.
How Pure Sine Wave Inverters Work
The operation of a pure sine wave inverter relies heavily on high-frequency switching technology and pulse width modulation (PWM) or sinusoidal pulse width modulation (SPWM) technology. These techniques ensure that the inverter is able to efficiently and accurately convert direct current (DC) to high quality alternating current (AC). The specific operating principles are as follows:
- DC Input: The inverter receives power from batteries, solar panels or other DC sources.
- High-frequency switching control: Power semiconductor devices (such as MOSFETs or IGBTs) inside the inverter are rapidly switched on and off by high-frequency switching (switching frequencies typically between 10kHz and 100kHz). This fast switching creates a high-frequency pulse signal that simulates the waveform of an alternating current.
- Pulse Width Modulation (PWM): Using PWM technology, the inverter is able to control the width and spacing of these pulses to adjust the average value of the output voltage. This approach achieves precise control of the output waveform, for example in terms of specific width, frequency and phase.
- Sinusoidal Pulse Width Modulation (SPWM): In some systems, the SPWM technique is used to generate an output signal that is closer to a sinusoidal waveform.SPWM effectively reduces harmonic distortion by varying the width of the pulses so that the output voltage waveform is closer to an ideal sinusoidal waveform.
- Filtering step: The generated high-frequency pulse signal passes through a filter, which usually consists of an inductor and a capacitor. These components eliminate high-frequency noise and clutter, smoothing the output waveform to a pure sine wave. Through this process, the inverter is able to output AC power with a very stable voltage and frequency.
- Output waveform: Eventually, after the filtering process, the AC power output from the inverter has a good sinusoidal waveform, which meets the needs of home and commercial equipment.
Advantages of Pure Sine Wave Inverters
The core advantages of pure sine wave inverters can be summarized as follows:
1. High quality output
Smooth sinusoidal waveform: The waveform of the pure sine wave inverter output is close to a perfect sine wave, which matches with the alternating current in the traditional power grid, and can effectively reduce the power noise and harmonic distortion to ensure the stable operation of the equipment.
2. Strong equipment compatibility
Widely applicable: capable of driving various types of electrical appliances and sensitive equipment, including computers, audio systems, microwave ovens and medical equipment. This means that when using a pure sine wave inverter, you don't have to worry about the problems that may occur with the equipment under different operating conditions.
3. Increased equipment efficiency
Reduce energy loss: High-quality power output can significantly reduce the energy consumption of electrical appliances, improve their efficiency, lower electricity bills and save operating costs.
4. Reduce noise
Quiet operation: Due to its smooth waveform output, the pure sine wave inverter produces low electromagnetic and mechanical noise during operation, which is suitable for noise-sensitive environments, such as homes, offices and hospitals.
5. Extend the life of electrical appliances
Enhanced protection: Clean and stable power supply can reduce destructive heat and stress on the internal components of the appliances, thus prolonging the life of the equipment and reducing the frequency of repair and replacement.
6. Stability
Powerful voltage regulation: Pure sine wave inverters are able to maintain a stable output voltage when the load changes, preventing appliances from being damaged by voltage fluctuations.
7. Suitable for renewable energy systems
Compatible with photovoltaic systems: Pure sine wave inverters are ideally suited for use in conjunction with solar power systems, efficiently converting solar energy into usable alternating current (AC) power to provide clean energy for homes and businesses.
8. Enhanced safety
Safe to operate: Due to its stable and reliable power output, the pure sine wave inverter reduces the potential risks during the operation of the equipment, providing a higher level of safety in use.
Cost and Complexity of Pure Sine Wave Inverters
Pure sine wave inverters typically have a high manufacturing cost, largely due to their complex design and high quality components. In order to generate a smooth and stable sine wave output, inverters require the use of advanced techniques such as high frequency switching, pulse width modulation (PWM) or sinusoidal pulse width modulation (SPWM). These techniques require the use of more sophisticated power semiconductor devices and high-performance circuit designs, which results in higher production costs than those of repairing sine wave inverters. In addition, the assembly process of inverters is usually more tedious and requires a corresponding increase in time and labor input, further pushing up the price. Therefore, consumers need to consider their return on investment when buying, especially in relation to the expected lifetime of the device and energy efficiency.
In terms of complexity, pure sine wave inverters are typically more complex to construct than other types of inverters. Their internal circuit design requires sophisticated electronic components and control algorithms to ensure the stability and high accuracy of the output waveform. This complexity not only makes inverters more challenging to manufacture and maintain, but also places higher demands on the professional skills of the technicians involved. In case of failure, repairing a pure sine wave inverter may require specialized technical support and tools, which makes its maintenance cost and difficulty increase as well. Therefore, despite the significant performance advantages of pure sine wave inverters, users need to consider the balance between cost and complexity before using them.
Pure Sine Wave Inverter vs. Modified Sine Wave Inverter
Pure sine wave inverters and modified sine wave inverters each have their own unique characteristics and application scenarios. Below is a comparison of the two to help you better understand the advantages and disadvantages of these two inverters.
| Features | Pure Sine Wave Inverter | Modified Sine Wave Inverter |
| Output waveforms | Smooth sine wave | Coarse waveform |
| Applicable devices | All equipment | Simple equipment |
| Manufacturing costs | Higher | lower |
| Maintenance | Complexity and need for specialized support | Simple, low maintenance |
| Efficiency | High efficiency, energy saving | Lower, energy loss |
| Electrical stability | Voltage and frequency stability | May be unstable |
| Equipment life | Extended equipment life | May shorten equipment life |
| Application scenarios | High power quality demand environment | Simple household equipment |
Output Waveform
-
Pure sine wave inverter: Generates a clean, smooth sine waveform with an output current consistent with the standard AC grid. This waveform can effectively reduce power noise and harmonic distortion, ensuring stable and safe operation of electrical appliances.
- Modified sine wave inverter: The output waveform is a square wave or a waveform that approximates a sine wave, which is rougher and has obvious upward and downward slopes. This waveform can operate on some devices, but may negatively affect the performance of electronic equipment.
Applicable Equipment
-
Pure sine wave inverter: Suitable for all types of appliances, including highly sensitive equipment (such as computers, medical
equipment and sound systems). Its output waveform ensures that these devices will not malfunction or be damaged due to power quality issues.
- Modified sine wave inverter: More suitable for simple devices and loads such as lighting, fans and certain power tools. However, for high-end equipment and sensitive electronics, corrected sine wave may cause the equipment to overheat, make noise or reduce efficiency.
Cost and Complexity
-
Pure sine wave inverter: Due to their complex design and high-quality components, they are more expensive to manufacture and therefore usually sell for a higher price than modified sine wave inverters. Maintenance and repair requires specialized technical support, which adds to the overall cost of ownership.
- Modified sine wave inverter: Due to its simple structure, the equipment cost is lower and the complexity of manufacturing and maintenance is also relatively low. Therefore, the acquisition cost is more economical suitable for consumers with limited budget or application scenarios.
Energy efficiency and performance
-
Pure sine wave inverter: Due to their efficient power conversion and low harmonic distortion, they usually provide higher energy efficiency, helping the equipment to save power and thus reduce long-term operating costs.
- Modified sine wave inverter: Due to the poor quality of the output waveform, it may result in reduced energy efficiency and additional power loss, which affects operational efficiency.
Pure Sine Wave Inverter or Modified Wave Inverter
Whether to choose a pure sine wave inverter or a modified wave inverter is a matter of weighing the specific needs and budget. If the application requires high power quality, such as precision instruments, medical equipment or telecommunication equipment, and the budget is sufficient, a pure sine wave inverter is a better choice, as its output waveform is stable and low distortion, which ensures reliable operation of the equipment and reduces the risk of failure.
If the budget is limited, and the application scenarios are mainly for resistive loads that do not require high power quality, such as incandescent lamps, electric stoves, etc., Modified wave inverter is more economical and practical. Although its output waveform quality is a little inferior, it can still meet the basic needs in specific occasions. When making a decision, load types, application scenarios and long-term benefits should be considered in order to make the most suitable choice.
Learn More About the difference between pure sine wave inverters vs modified sine wave inverters
How to buy a pure sine wave inverter
When choosing a pure sine wave inverter, you can consider the following aspects:
Define the demand and budget
Power requirement: Determine the rated power of the inverter according to the power of the load to be driven. Ensure that the output power of the inverter is greater than the maximum power of the appliances, especially for some devices with large start-up energy requirements, such as motors and air conditioners, which require additional power margins.
Budget consideration: Pure sine wave inverters are usually more expensive, so you need to make a reasonable choice according to your budget.
Focus on performance indicators
Output waveform quality: Ensure that the inverter can output high-quality pure sine wave with low distortion rate to provide stable and reliable power supply.
Conversion efficiency: High conversion efficiency means more economical energy utilization and less energy loss.
Protection function: Choose an inverter with overload protection, short-circuit protection, over-voltage protection, under-voltage protection, etc. to ensure the safe operation of the system.
Standby power consumption: Pay attention to the power consumption of the inverter in standby mode, lower standby power consumption helps to save energy.
Consider the application scenario
Home backup power: Choose an inverter that is portable and easy to operate to meet the emergency needs of the home in case of a power outage.
Industrial applications: Focus on the inverter's high power, high efficiency, and ability to operate stably for long periods of time.
New energy system: such as solar power system, you need to choose an inverter that can adapt to the characteristics of new energy generation.
Certifications and Standards
Quality certification: Check whether the inverter has obtained relevant quality certificates (e.g. CE, UL, ISO, etc.) to ensure that the quality of its products meets industry standards and safety requirements.
What devices can a pure sine wave inverter run?
Pure sine wave inverters are capable of driving almost any device that requires AC power due to their high quality power output and stable waveform. Additionally, if the inverter is connected to many solar systems for grid-connected operation, it is critical to ensure that the inverter output is a perfect sine wave. With a pure sine wave inverter, your equipment will be able to run as smoothly and efficiently as if it were connected directly to the grid.
Commonly available devices that can operate with pure sine wave inverters:
| Equipment Type | Equipment Name |
| Electronic equipments | Computers, laptops, monitors, printers, routers, cell phone chargers |
| Sets | Refrigerator, microwave, oven, rice cooker, blender, vacuum cleaner, washer, dryer |
| Office equipments | Copiers, fax machines, scanners, presenters, televisions, home theaters, sound systems |
| Medical equipments | Heart rate monitors, ventilators, ultrasound machines, infusion pumps, razors, electric toothbrushes |
| Refrigeration equipments | Window air conditioner, split air conditioner, mobile air conditioner, freezer, ice cream maker |
| Power tools | Chainsaws, impact drills, grinders, pneumatic tools, lawnmowers, electric brushcutters |
| Lighting equipments | LED lamps, general lighting fixtures |
| Renewable energy systems | Solar energy systems, small wind turbines |
Application Scenarios and Product Recommendations for Pure Sine Wave Inverters
Home Backup Power
Recommended Product: Topbull 2000W Pure Sine Wave Inverter
Recommended reason:
-
Moderate power: 2000W power can meet the power needs of basic household appliances, such as TV, refrigerator, lighting and so on.
-
Pure sine wave output: Ensure the stable operation of electrical equipment, reduce noise and vibration, and prolong the service life of the equipment.
- Safe and reliable: with multiple protection functions, such as overload protection, short-circuit protection, etc., to ensure the safety of home electricity.
Outdoor work and camping

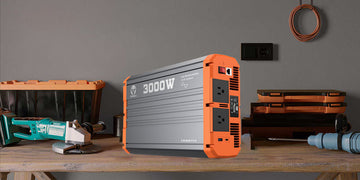

Recommended Product: Topbull 3000W Pure Sine Wave Inverter
Recommended Reason:
-
High power output: 3000W power can support high power loads such as power tools and lighting equipment required for outdoor work.
-
Portability: Suitable for outdoor carrying to meet the power needs when camping, such as driving rice cooker, coffee maker, lighting, etc.
- Stable and Reliable: Pure sine wave output ensures stable operation of the equipment in outdoor environments, and multiple protection functions guarantee the safety of use.
Medical equipment and precision instruments
Recommended Product: Topbull 4000W Pure Sine Wave Inverter
Reason for Recommendation:
-
High power demand: Medical equipment and precision instruments usually have higher requirements for power quality, and some of them have higher power, 4000W power can meet most of the needs.
-
Pure power: Pure sine wave output ensures the stable operation of medical equipment and precision instruments and reduces the impact of electromagnetic interference on the equipment.
- Safe and reliable: Multiple protection functions ensure the safety of the equipment in case of emergency, such as overload protection, short circuit protection, etc.
Solar energy system
Recommended products: Choose the right power model according to the size of the solar system and load demand, such as Topbull 3000W or 4000W pure sine wave inverter.
Recommended Reason:
-
Efficient Conversion: Pure sine wave inverters can efficiently convert the DC power generated by the solar system into AC power to meet the needs of household or commercial power consumption.
-
Compatibility: Supports multiple voltage inputs and outputs, making it easy to connect with solar systems and other power devices.
- Intelligent management: Some models may have intelligent management features, such as MPPT (Maximum Power Point Tracking) technology, to improve the power generation efficiency of the solar system.
Summary
Pure Sine Wave inverters have become the preferred choice for more and more home and business power solutions due to their stable power output and broad device compatibility. Understanding how it works and its advantages will help you make an informed decision when shopping for a pure sine wave inverter, whether it's used as an emergency safeguard for home power or in more specialized applications, pure sine wave inverters are devices worth investing in.
Among the many pure sine wave inverter brands, Topbull pure sine wave inverters have won wide recognition in the market for their excellent performance and reliable quality. If you are looking for a reliable pure sine wave inverter, Topbull pure sine wave inverter is a good choice! If you have more questions about power solutions, please feel free to ask, we will be happy to provide you with professional advice and services.
FAQs about pure sine wave inverters
Are pure sine wave inverters better?
Yes, a pure sine wave inverter is usually better. It provides a pure and stable power output with a waveform very close to that of the utility grid. This makes it ideal for sensitive electronic equipment and appliances that require high quality power to function properly and avoid equipment damage.
What is the difference between a normal inverter and a pure sine wave inverter?
Ordinary inverters (such as square wave or modified sine wave inverters) produce output waveforms that are not smooth enough and have more harmonic distortion. This can lead to problems such as noise, vibration and overheating in some equipment. In contrast, pure sine wave inverters produce a smooth, continuous waveform, identical to that of the mains grid, ensuring compatibility with a wider range of equipment and optimum performance.
What is the efficiency of a pure sine wave inverter?
The efficiency of a pure sine wave inverter typically ranges from 80% to 95%, depending on the design of the inverter, the manufacturing process and the load conditions. A highly efficient inverter reduces energy loss and improves energy efficiency.
Do I need a pure sine wave inverter to run my TV?
Yes, a pure sine wave inverter is recommended to run a TV. While some TVs may be able to operate with a modified sine wave inverter, harmonic distortions in the output can cause interference, image distortion, and even damage to the TV's internal components with prolonged use. A pure sine wave inverter ensures optimal performance and extended life for your TV.
What devices can the 1000W Pure Sine Wave Inverter run?
A 1000W pure sine wave inverter can drive a wide range of devices within its power range, including small to medium sized appliances such as TVs, laptops, small refrigerators, fans, lamps and some power tools. However, it is important to check the power requirements of each device and avoid overloading the inverter to prevent damage or performance issues.
Can pure sine wave inverters be used for solar power systems?
Yes, pure sine wave inverters are commonly used in solar power systems. They convert the DC power generated by solar panels into AC power that can be used to power household appliances or fed back into the grid. In solar applications, pure sine wave inverters are preferred for the high quality of power they provide, which is compatible with a wide range of AC-powered devices and helps maximize the efficiency and longevity of the solar system.
